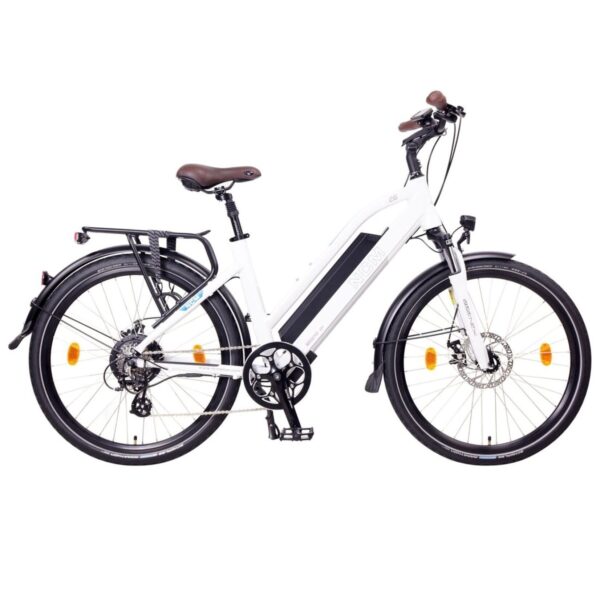

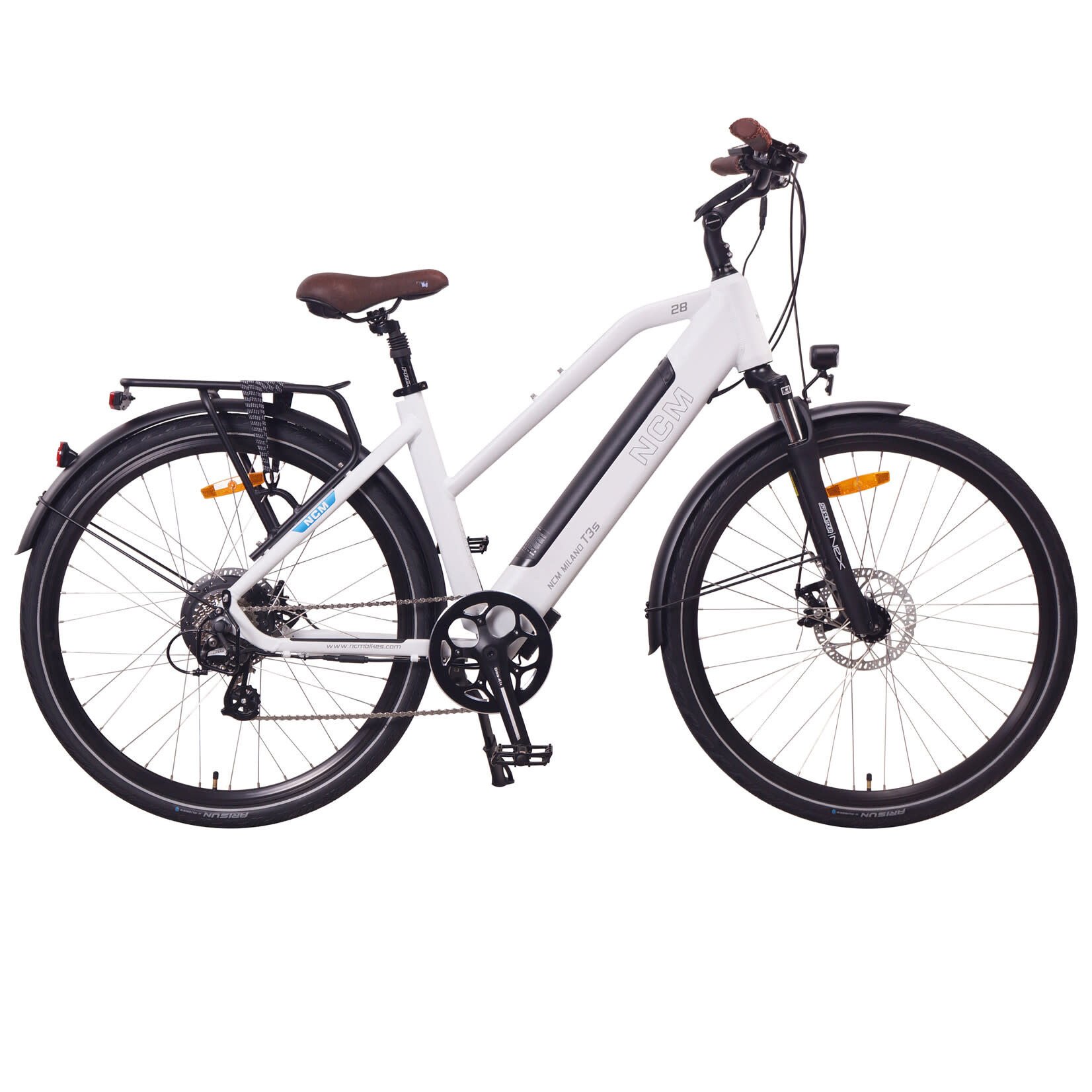

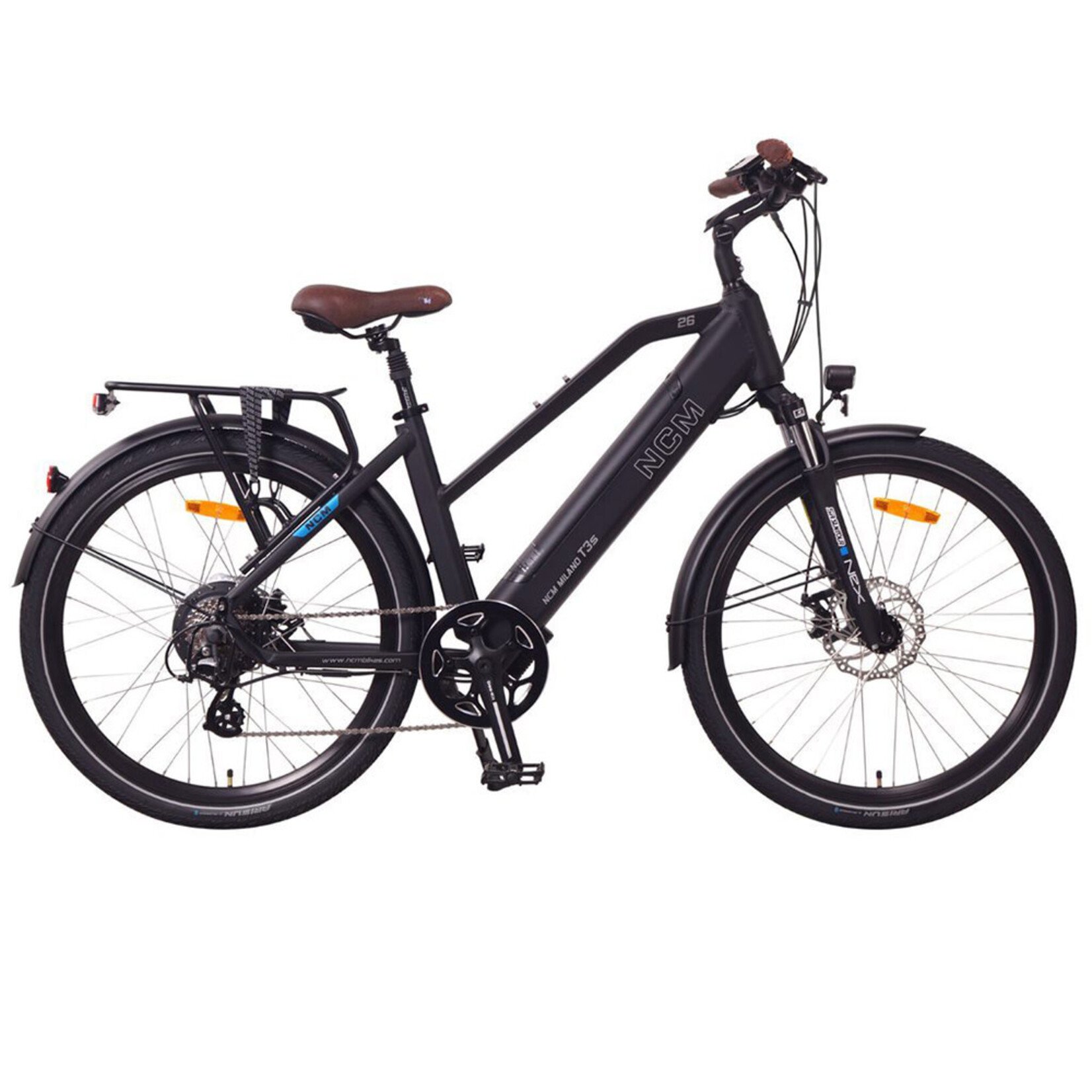

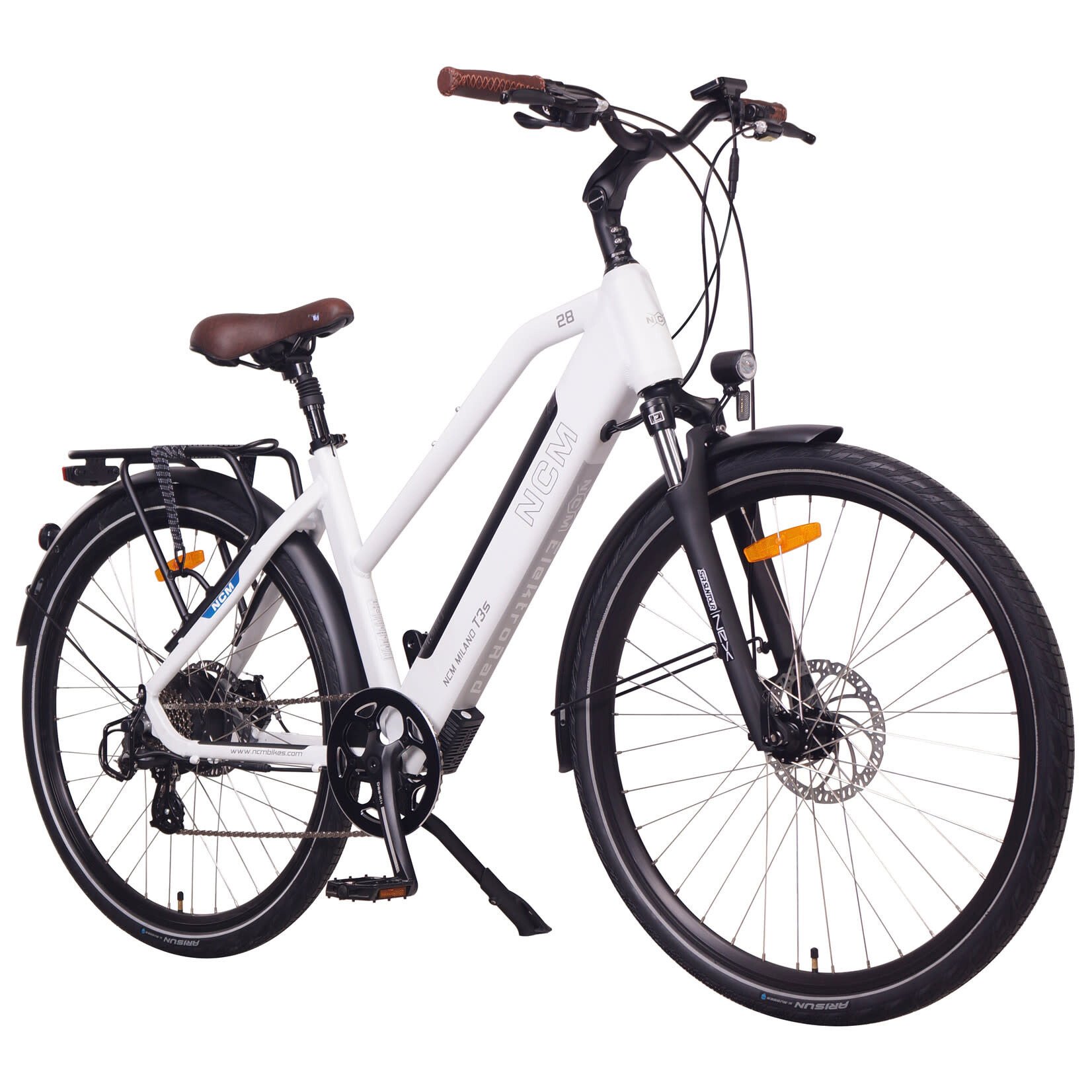

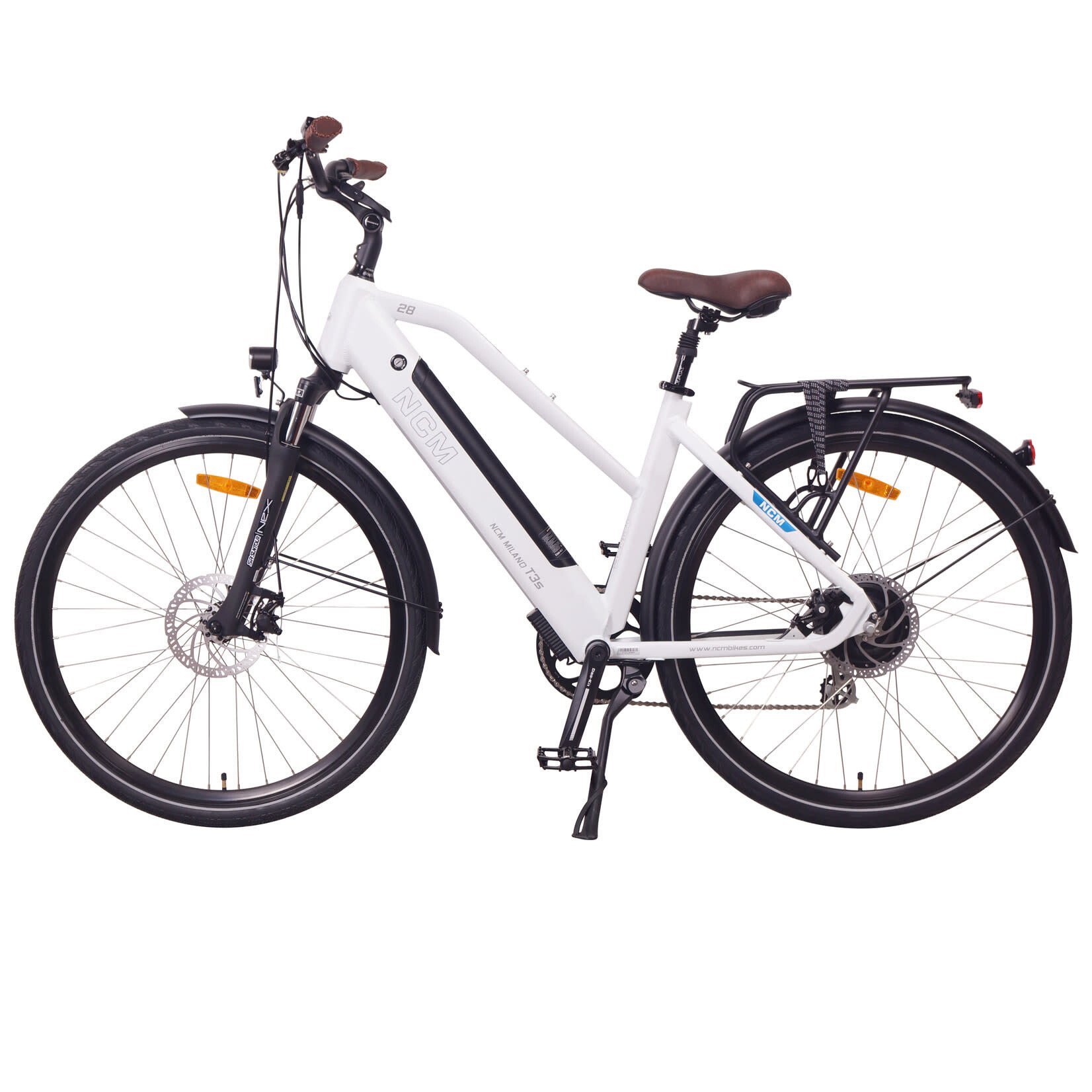

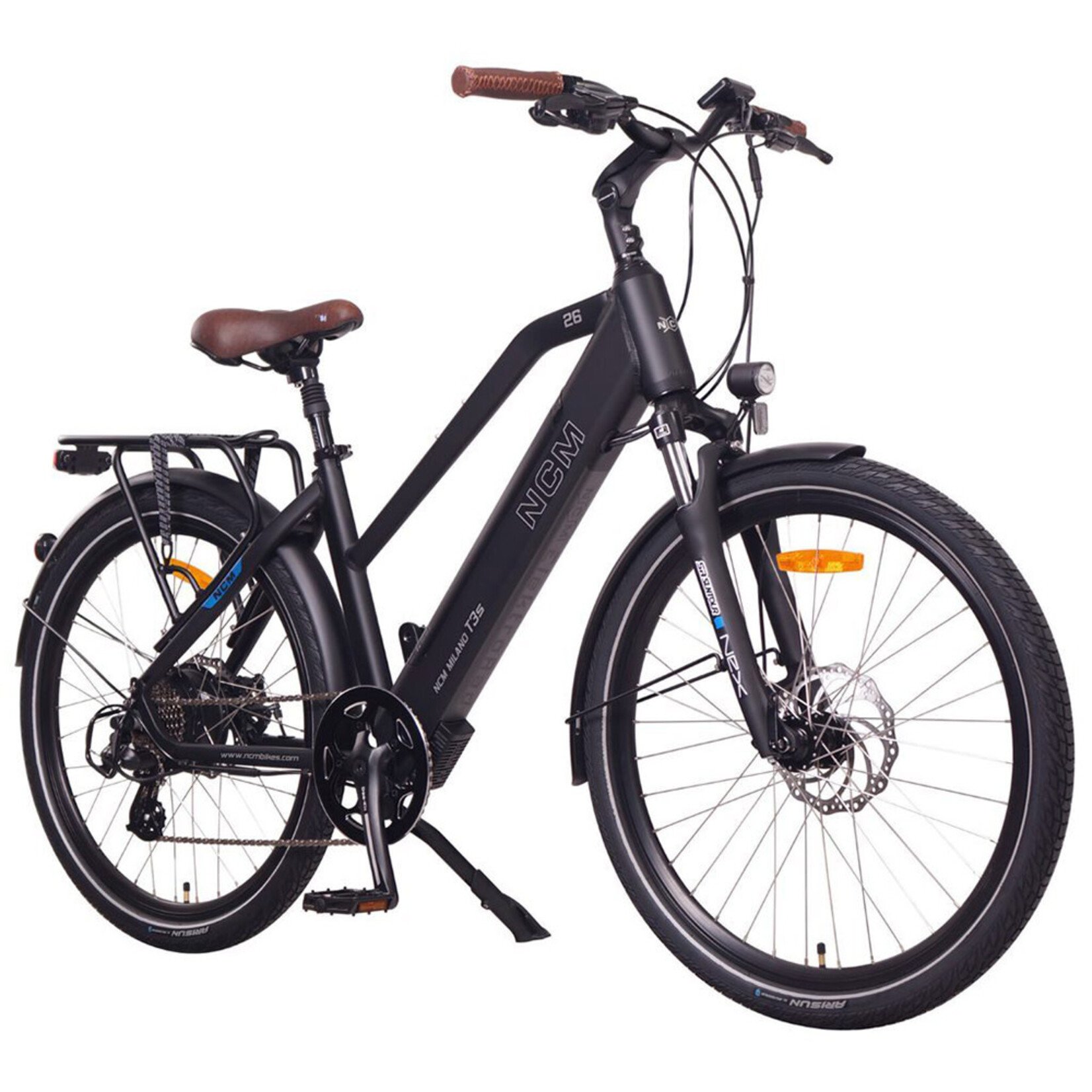

NCM Milano T3 Trekking Step
48V 12AH
Milano NCM T3 is the brand new generation of the NCM Brand. Successor to the flagship Milano; it features new reinforced fully integrated and removable battery in the frame, a sleek new design, improved ergonomics and versatility!
General Information
Weight: 26”= 27kg
Type: E-Trekking
Wheel size: 26” x 1.95
Load capacity: Max. 125kg
Maximum speed: 25km/h
Electric parts
Motor: Das-Kit, X15 Rear-drive motor, 48V 250W, 25km/h
Controller: Das-Kit, CT5-I5, 48V 15A

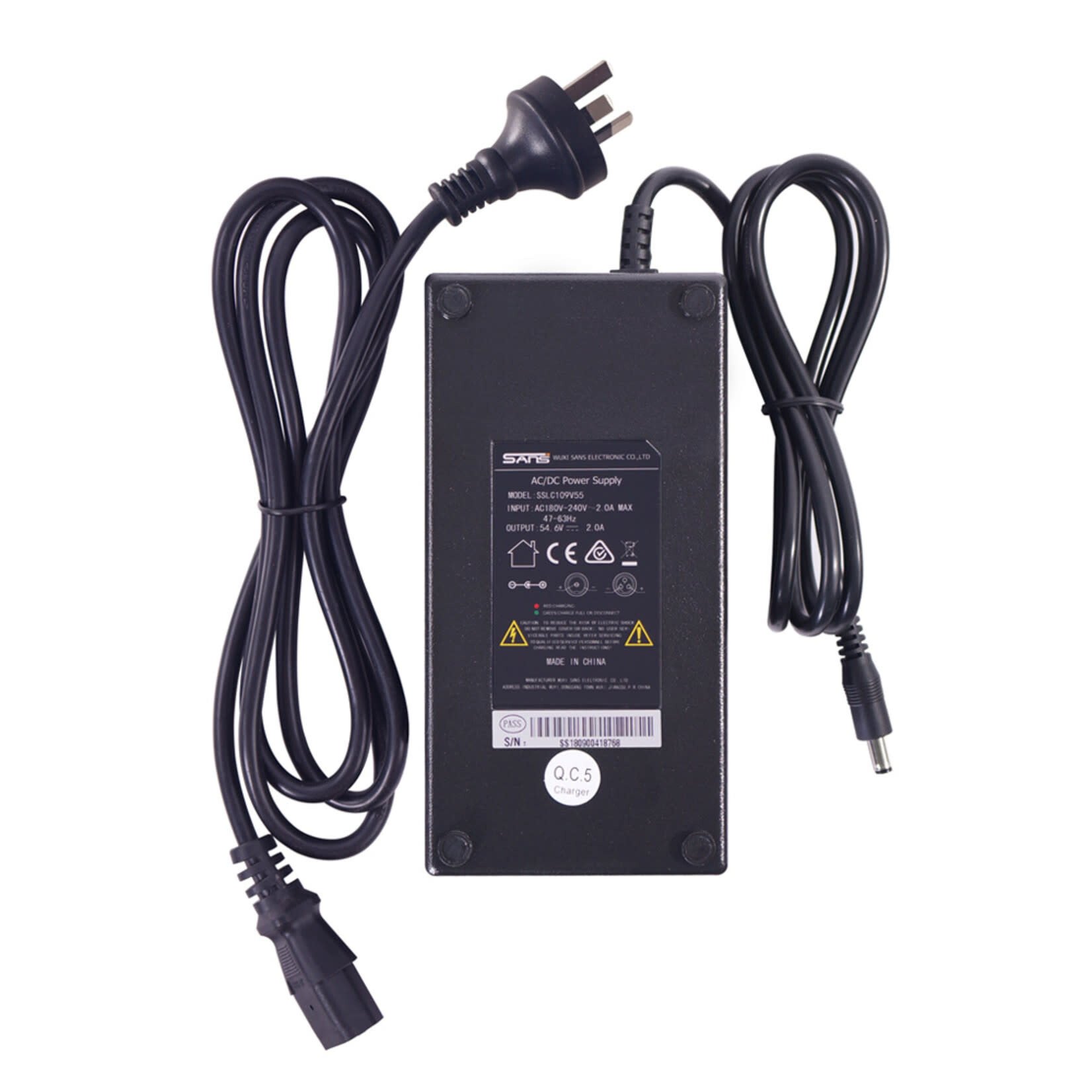

Charger: 48V 2A included (round plug) DC482AU
Battery: DEHAWK I5-4813H,48V 13AH, 624WH, with USB port
Average range: 40-120km depending on assistance level
Display: LCD Das-Kit L7 display with many functions, 6km/h walk assist
Front/Rear Light: Spanninga, Kendo, 48V, 30 Lux Spanninga, / Solo, with 2xAA batteries
Bike parts
Frame: Alu. 6061, 26″*457MM /28″*480MM
Handelbar: Promax MA579 adjustable
Fork: Suntour, NEX 26” / 28”
Brake Levers: Tektro, left with brake sensor
Brakes F/R: Tektro Mechanical Disc Brakes, MD-M280
Chain derailleur: Shimano, Altus M310, 7 speed
Crank set: Prowheel, OUNCE-248AC, 48T
Gear shift: Shimano, Altus M310, 7 speed
Pinion: 7-speed screw ring, 14-28T
Tyre: Schwalbe Marathon 26″*1.75 / 28″*1.5 700C black
Saddle: Selle Royal, gel saddle, brown (imitation leather)
Seatpost: Promax, SP-884, with suspension, 27.2*300MM
Handles: Selle Royal, brown (imitation leather)
Pedals: Wellgo, B087, black
DeHawk battery Adjustable handlebar & strong
Ergonomic bicycle Grips
Confortable sitting posture
Easy handling of the components
Adjustable handlebar for a good driving position
All important controls easily accessible
supplied with 48V to deliver a high output power
over 600Wh capacity for a longer distance
reach up to 120km (depending on the conditions)
battery integrated in the frame for better aesthetics
easily removable battery so you can charge it anywhere
A built-in USB port with 5V to charge mobile phones
Safe braking performance

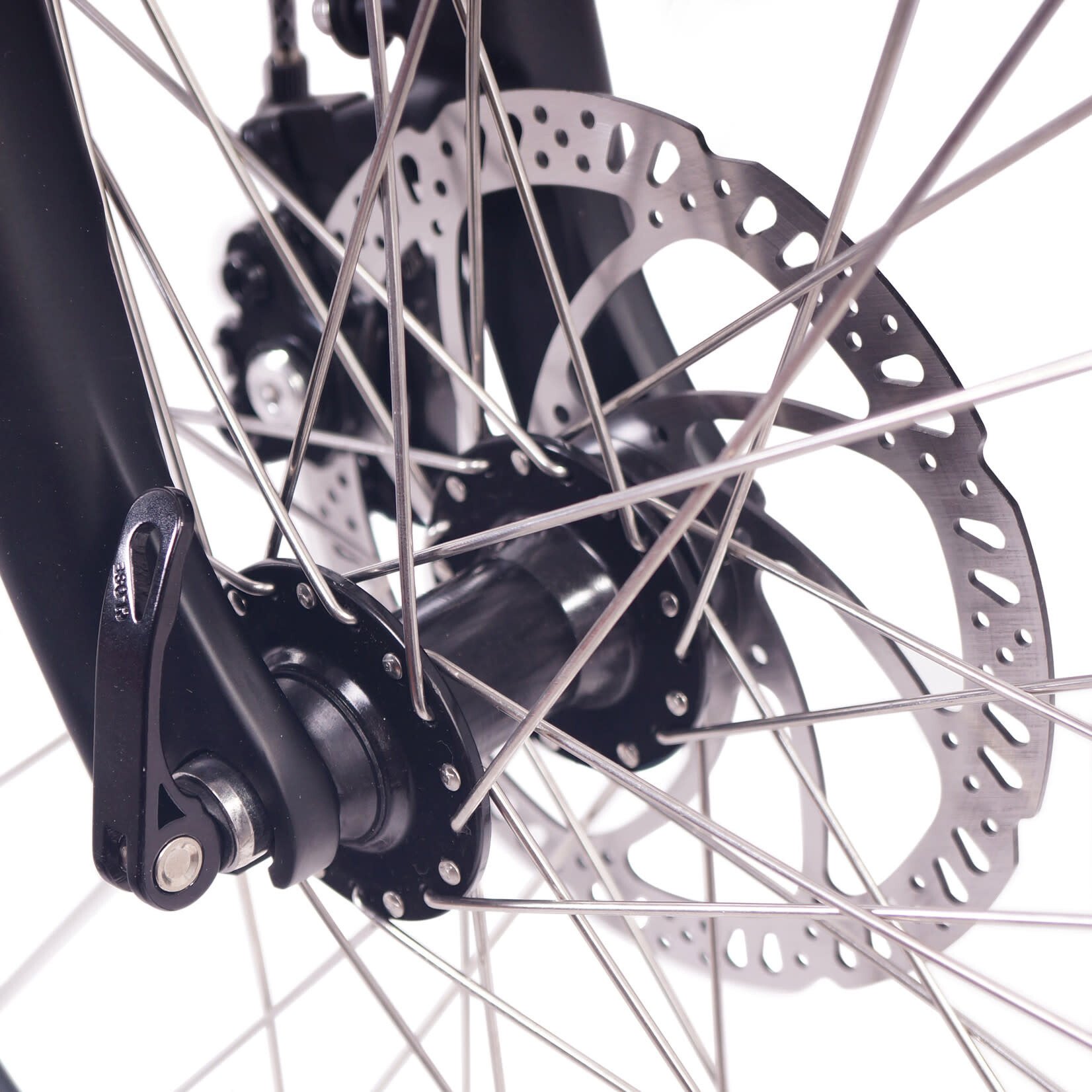

Front Brake:
Reliable mechanical disc brake system. The 180 mm brake disc ensures powerful and safe braking at all speeds.

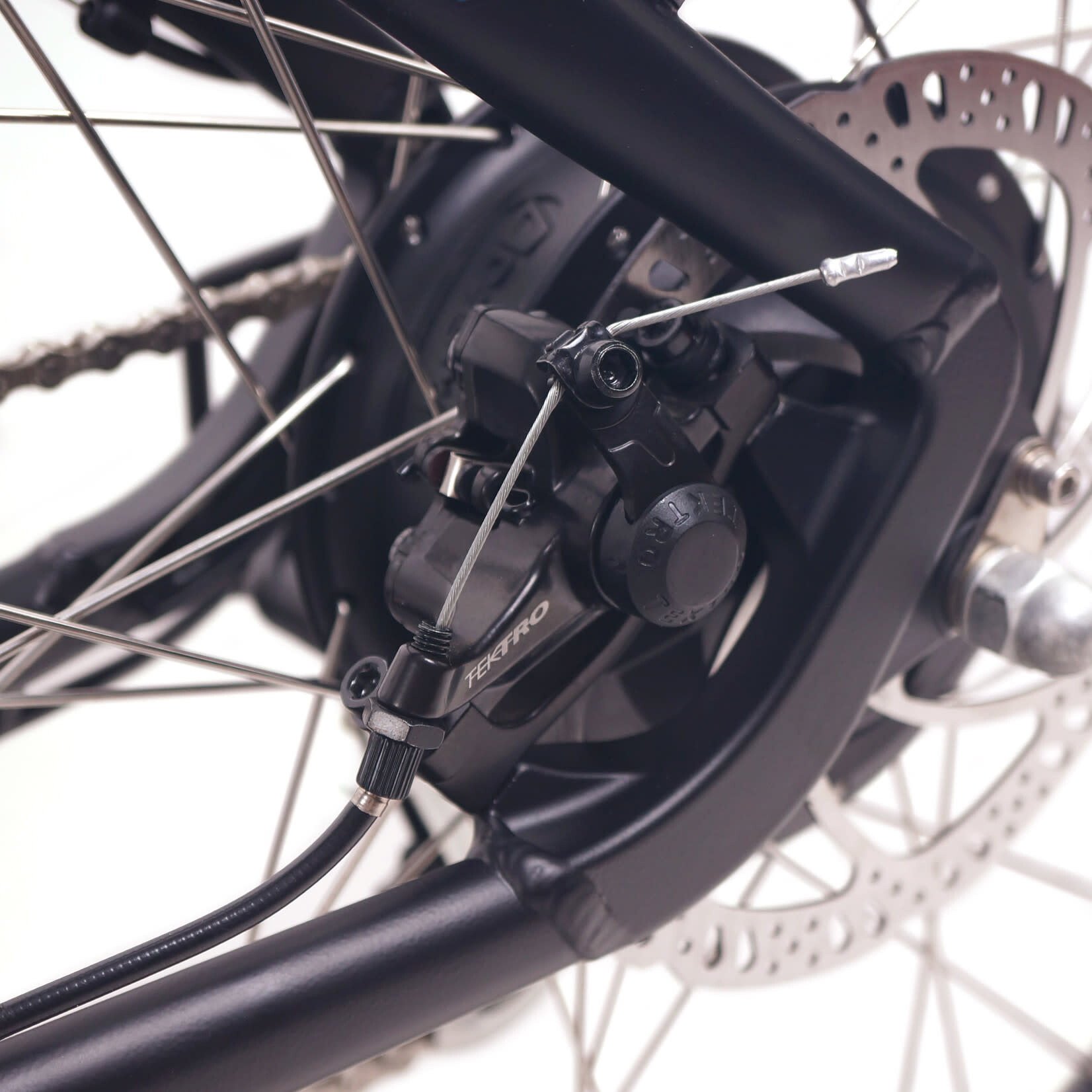

Rear Brake:
Reliable mechanical disc brake system from Tektro. The 160 mm brake disc ensures powerful and safe braking at all speeds.

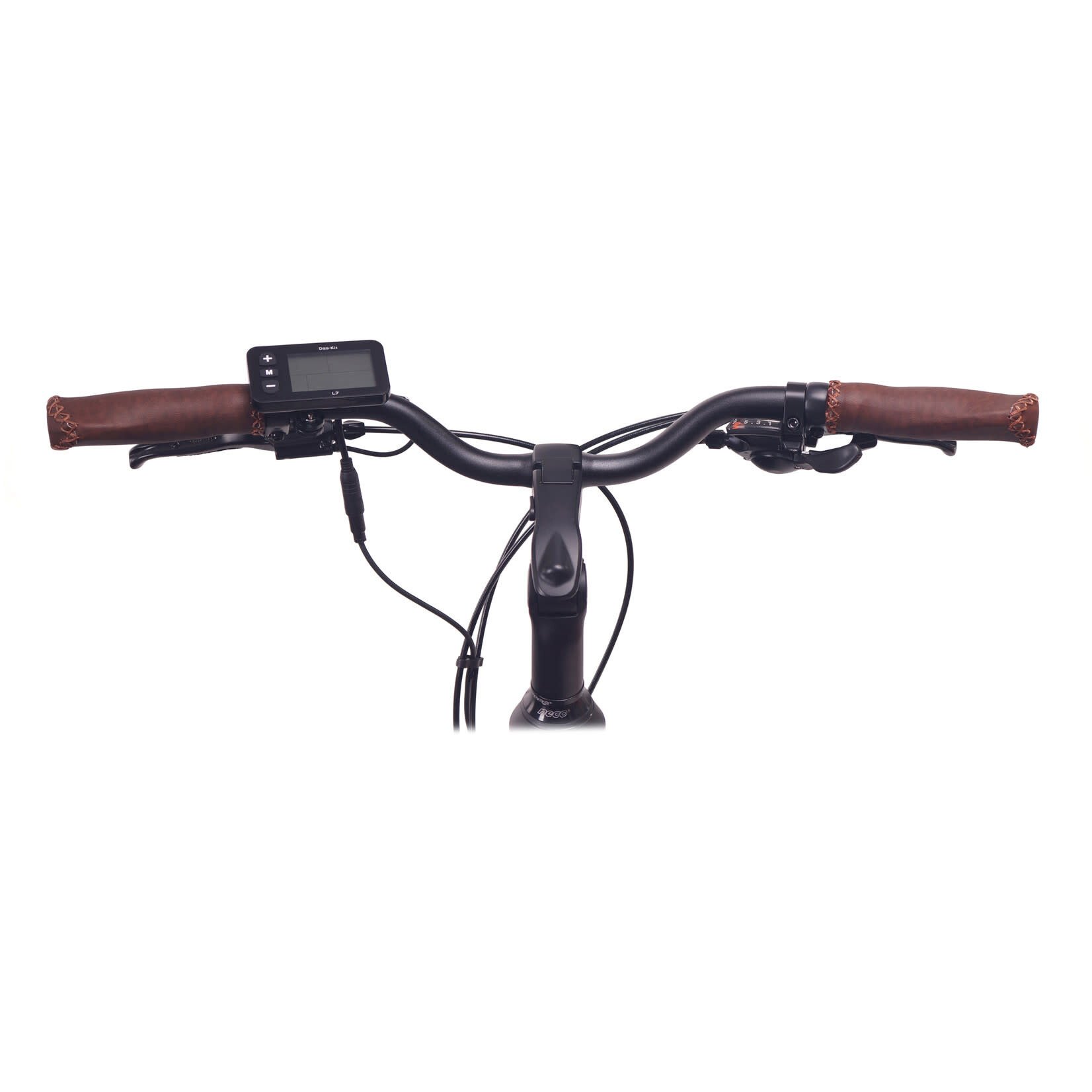

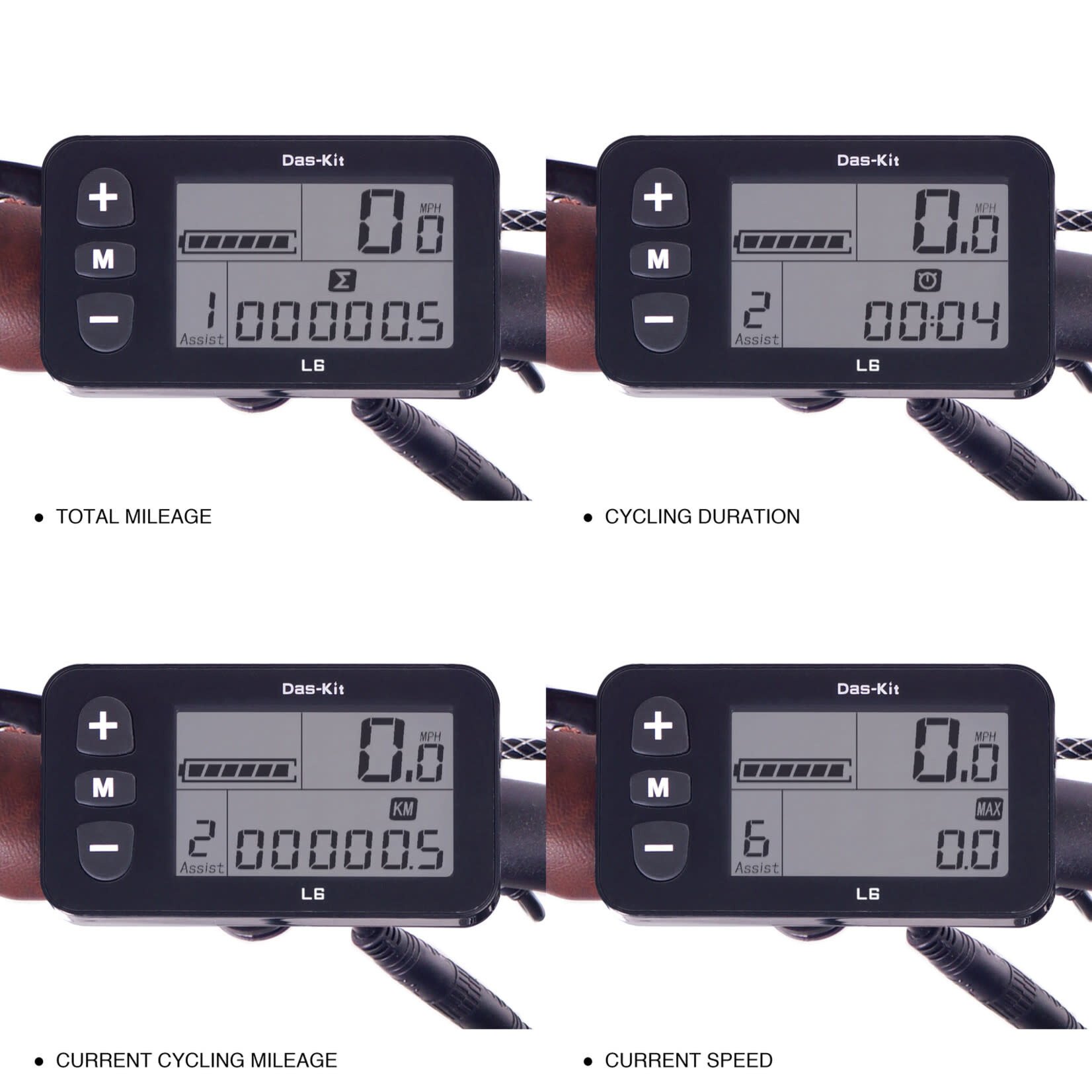

Das-Kit System
Das-Kit system with a high-contrast LCD display provides all important information at a glance and can also
be read easily in direct sunlight. The LCD display gives good feedback, is extremely robust and easy to use.
The additional power can be individually controlled via six support levels.
It is protected against dirt and splash water.

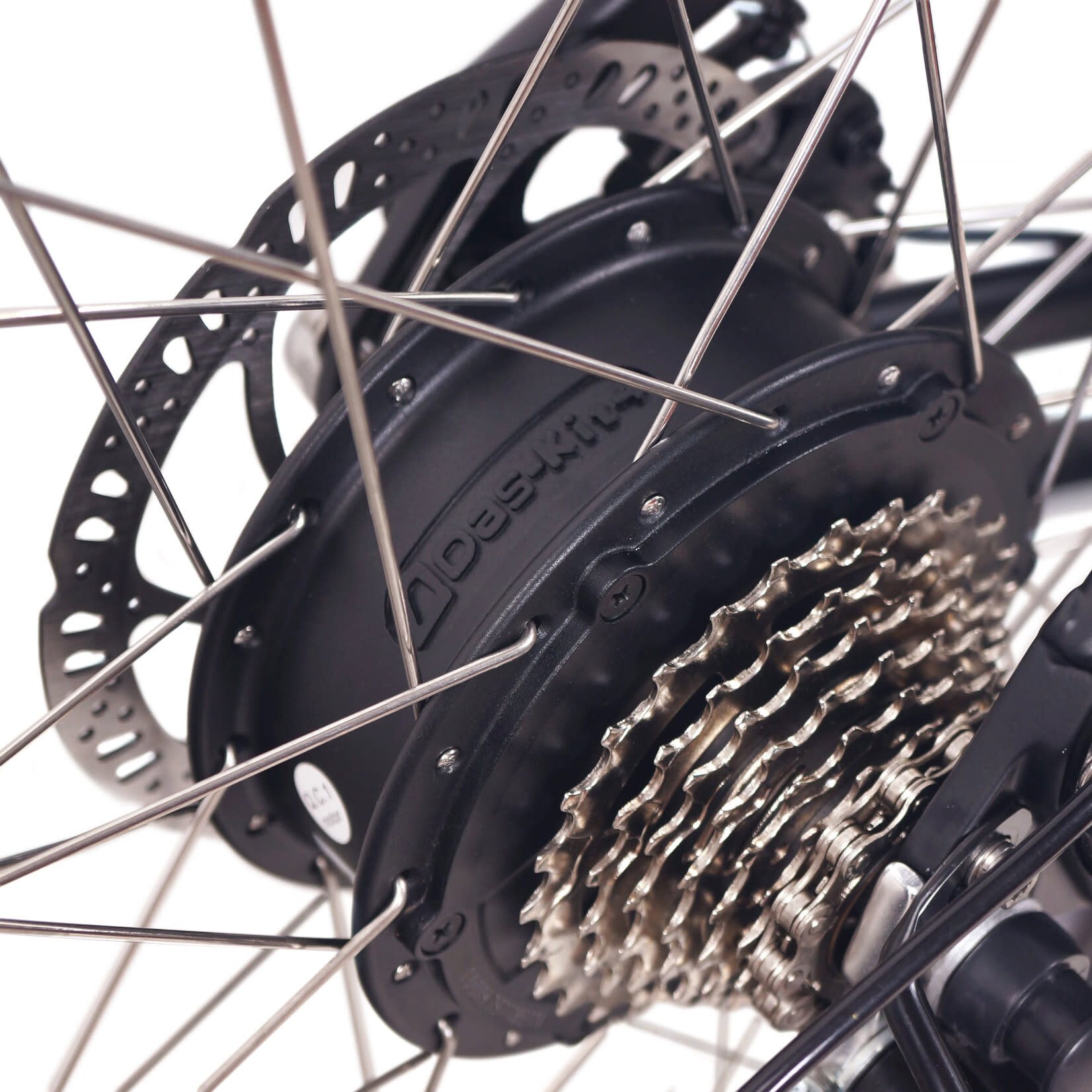

The rear engine delivers a full torque up to 55 Nm with 250W rated power and 48V voltage.
A large display shows all necessary settings.
6 support levels and a pushing aid of up to 6km/h are adjustable.
The display’s control buttons are deliberately placed on the left side – close to the left hand – so the driver can easily switch between support levels or displays without having to lift his hand off the handlebars.
