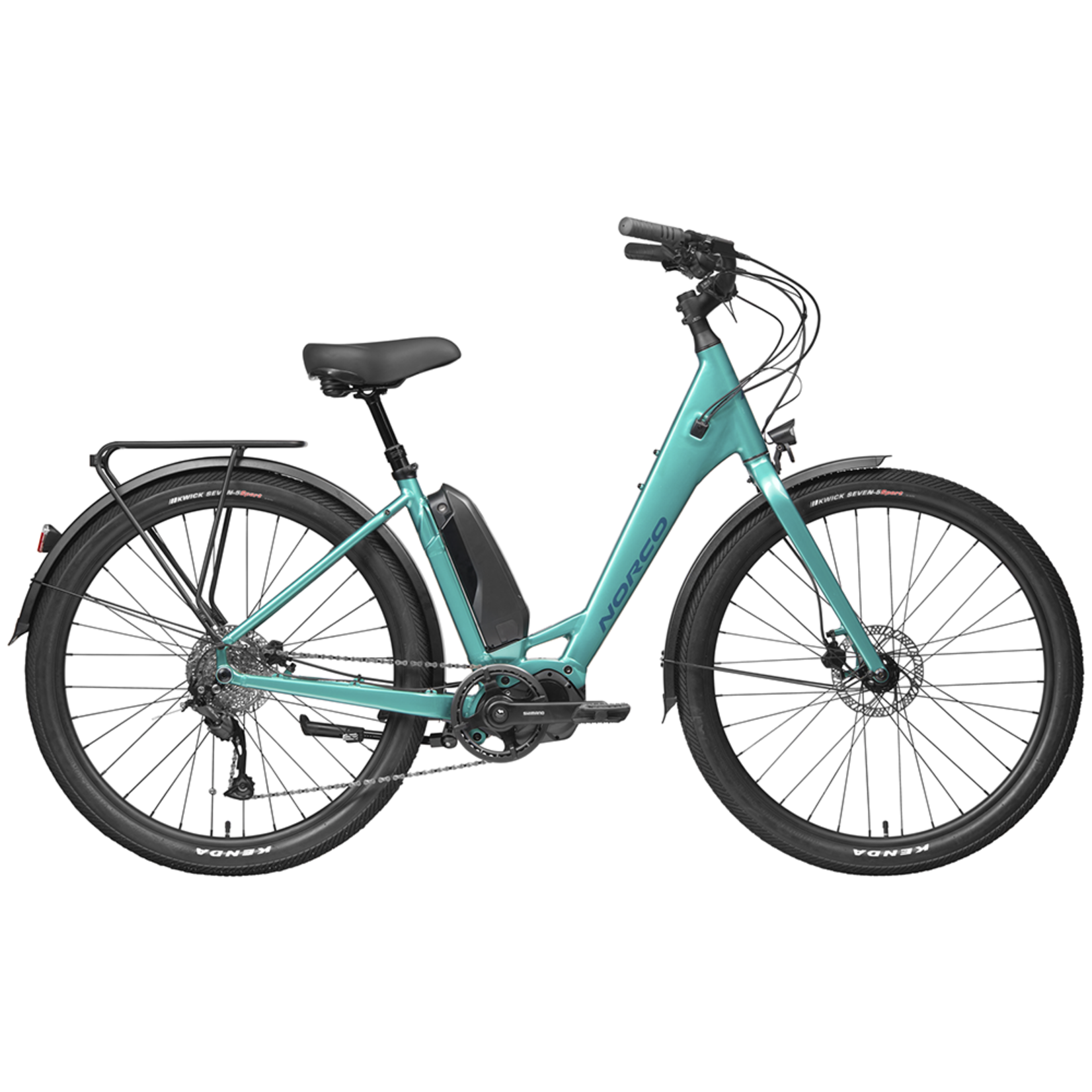

Norco Commuter E-Bike – Hybrid Series – 23 SCENE VLT

FEATURES

• Aluminium low-step frame w/internal cables
• Shimano STEPS assist adds a kick when youneed it
• Easy-adjust seat height with dropper post
• Shimano Alivio Rapidfire 9 speed drivetrain
• Tektro hydraulic disc brakes with 160mm rotors
• Large volume 27.5″ x 2.2″ Kenda tyres
• Thru axles for safety, security and frame stiffness
• Equipped with lights, rear carrier rack, fenders

SPECIFICATIONS

FRAME: Double Butted Alloy E-Bike Frame, Internal Cables
FORK: Alloy, Steel Steerer
HANDLE: BAR Custom Alloy 660mm, 60mm Rise
STEM: Alloy 70mm (S, M), 80mm (L, XL), 31.8mm Clamp
SEAT POST: JD TranzX Dropper, 31.6mm, 80mm (S, M), 100mm (L)
SADDLE: Norco Comfort, Elastomers
FRONT BRAKE: Tektro HD-M275, Hydraulic Disc, E-Rated, Resin Pads
REAR BRAKE: Tektro HD-M275, Hydraulic Disc, E-Rated, Resin Pads
SHIFTER REAR: Shimano Alivio SL-M4000
REAR DERAILLEUR: Shimano Alivio RD-M4000
CASSETTE: Shimano Alivio CS-HG400, 11-36T, 9 Speed
CRANKSET: Shimano FC-E6100, 38T, 170mm
FRONT HUB: Sealed Bearing, 15x100mm, 6-bolt
REAR HUB: Sealed Bearing, 12x142mm, HG, 6 Bolt
RIMS: Alloy DW Disc, 27.5″
DRIVE UNIT: Shimano STEPS E6100
BATTERY: Shimano E8010 504Wh
DISPLAY: Shimano E7000
